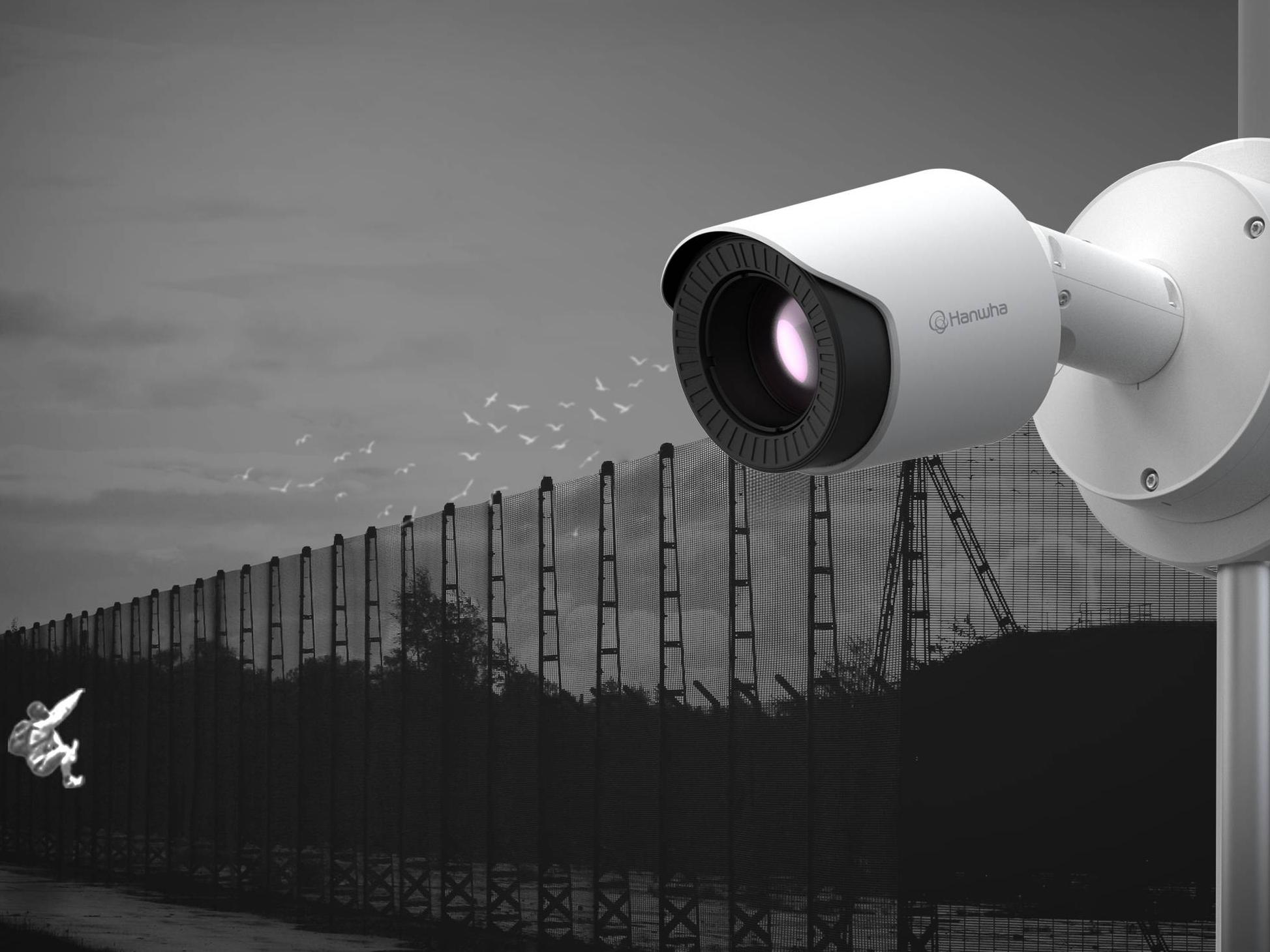

QVGA AI thermal surveillance cameras address perimeter detection

Whether securing Data Centres at close range or tracking movement across long distances at borders and on highways, or around large perimeters at airports and energy facilities, the QVGA AI thermal surveillance cameras deliver “dependable and accurate” detection in complete darkness, as well as in rain, fog and smoke.

Accurate AI object detection provides real-time identification of people and vehicles, reducing false alarms caused by shadows, animals or wind-blown objects. Event-triggering analytics such as virtual line crossing and loitering detection ensure more proactive monitoring, while AI-based motion detection helps security teams to focus only on relevant movement. Event alerts are automated with high precision.

Thermal contrast

The ultra-sensitive cameras provide “outstanding” thermal contrast. This allows operators to capture clearer and more detailed images in challenging low-contrast environments or across long distances where conventional thermal cameras may struggle. Additionally, the range can support temperature change detection in three areas of interest.

The 13 mm, 19 mm, 35 mm and 60 mm focal length options, each available in 8 frames per second or 30 frames per second, provide flexible coverage for diverse surveillance needs. For closer range monitoring, cameras equipped with the 13 mm lens are able to distinguish a vehicle at a distance of 115 metres and a person at 87 metres.

When long-range detection is required, the 60 mm lens extends vehicle detection to 532 metres and person detection to 399 metres. With detection capabilities up to 5.4 km (*based on the Johnson Criteria), Hanwha Vision’s thermal camera line-up provides the flexibility and reach needed to protect expansive perimeters.

The 8 frames per second cameras fall outside of the Wassenaar Arrangement, an export control regime that governs specific goods including thermal cameras with frame rates over 9 frames per second. This makes exporting and importing the cameras far simpler, in turn enabling a quicker delivery time.

Extreme environments

The range is built for extreme environments. The camera features an IP67 weather rating, IK10 impact resistance and a shielded RJ-45 connector for added surge protection. NEMA 4X, NEMA-TS 2 and MIL-STD-810H standards compliance ensures that these cameras are significantly more rugged than a typical camera. Lightweight design and simplified mounting ensure fast and intuitive installation even in difficult and tight locations.

Cyber security is built into these cameras, with secure boot, firmware encryption and a FIPS 140-3 Level 3 certified secure element ensuring robust protection of sensitive video data and compliance with what are necessarily demanding industry regulations.

There’s also “seamless integration” with major VMS platforms including Genetec, Milestone and Wisenet WAVE.

*Models with 8 frames per second: TNO-C3042T/TNO-C3052T/TNO-C3062T/TNO-C3082T *Models with 30 frames per second: TNO-C3040T/TNO-C3050T/TNO-C3060T/TNO-C3080T

*Further information is available at www.hanwhavision.eu
